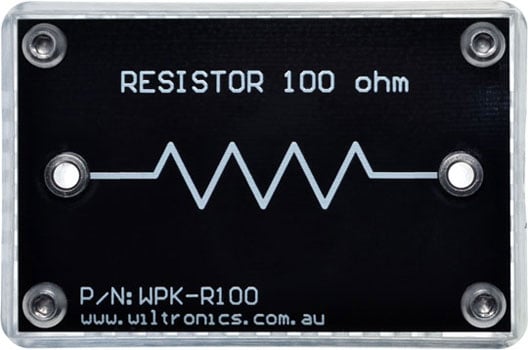

WPK Resistor Circuit Brick
$12.10
Description
This WPK Resistor Circuit Brick features high-quality resistors and is available in a range of values and wattages to suit different purposes. Use the 560 Ohm Resistor Circuit Brick to run a LED off 12V.
Features
- 4mm banana sockets
- Industry-standard schematic symbol is printed on front
- Hard-wearing, durable construction
- Polycarbonate clear base allows the components inside the brick to be viewed
- Safely build a working circuit without soldering
Full Range
| Resistance | Power | Max. Amps | Product Code |
|---|---|---|---|
| 10 Ohm | 10W | 500mA | WPK-R10 |
| 47 Ohm | 10W | 250mA | WPK-R47 |
| 100 Ohm | 5W | 100mA | WPK-R100 |
| 330 Ohm | 1W | 30mA | WPK-R330 |
| 560 Ohm | 1W | 20mA | WPK-R560 |
