Pasco PS-3215A - Wireless Colorimeter and Turbidity Sensor

DLPS-3215A
Pasco Wireless Colorimeter & Turbidity Sensor

PASCO Products from this website are only available for sale in Australia.

If you are an Australian customer and would like pricing information, please contact us at [email protected] or call (03) 5334 2513

Description

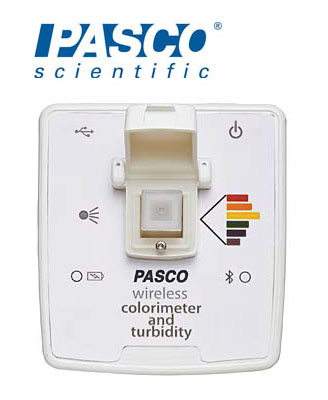

The Wireless Colorimeter and Turbidity Sensor PS-3215A simultaneously measures the absorbance and transmittance of six different wavelengths. Each wavelength represents a region of the ROYGBIV color wheel and can be displayed graphically using PASCO software. The sensor can be used to study Beer's Law (absorbance vs. concentration), enzyme activity, photosynthesis, and the rates of chemical reactions (absorbance vs. time).

The colorimeter can be used to study concentrations of solutions, the rates of chemical reactions, and more. The Wireless Colorimeter and Turbidity Sensor PASCO PS-3215A is also resistant to splashes and spills, ensuring years of use in labs. It was also designed to draw minimal amounts of power which give it a long battery life and reduces how often it needs to be recharged. Calibration is also fast and easy, eliminating wasted time duringlab activity.

This sensor functions as a high-quality turbidimeter for the study of water quality. Rather than simply measure transmitted light, the Wireless Colorimeter and Turbidity Sensor uses the industry-standard method of using light scattered by a sample at 90 degrees resulting in more accurate and repeatable measurements. In addition, the internal housing of the cuvette is opaque, which limits ambient light and assure data accuracy.

With the wireless, rugged design, this instrument is ideal for use in the field as well as in the lab.

Full compatibility details are available, including compatibility information for older computing devices.

Features

  • Stabilized light source for consistent readings
  • Able to measure six different wavelengths simultaneously
  • A colorimeter and turbidimeter together for one low price
  • "Smart colors" in PASCO software display the absorbance & transmittance at each wavelength in a very visual way
  • Quick and easy calibration

Specifications

Required Software

Requires the latest versions of Pasco software. Recommended software options: SPARKvue, PASCO Capstone, or Chemvue.

Color Detection/Peak Wavelengths

680 nm (red) 630 nm (orange) 590 nm (yellow) 555 nm (yellow-green) 515 nm (green) 480 nm (blue) 445 nm (indigo) 415 nm (violet)

Detection Wavelength Range

±20 nm from peak colour

Colorimeter Absorbance

0 - 3 Abs units Useful range of 0.05 - 1.5 Abs

Transmittance

0 - 100%

Turbidity

Illumination Wavelength: 850 nm Range: 0 to 400 NTU

Accuracy

±5% NTU

Connectivity

USB and Bluetooth 5.2

Logging

Yes

Battery Type

Rechargeable LiPo

Included

Colorimeter/Turbidimeter

USB charging cable

6 colorimetry cuvettes (2 clear sides and two ribbed sides)

4 turbidity cuvettes (4 clear sides)

2 cuvette racks

100 NTU Calibration Solution
