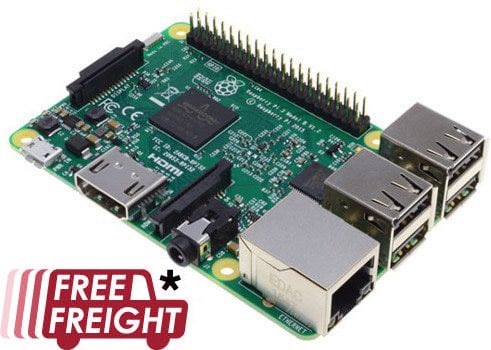

Raspberry Pi 3 Model B
A division of Wiltronics
The Raspberry Pi 3 Model B has the same popular board format as the Raspberry Pi 2 and Raspberry Pi B+, but boasts a faster 1.2GHz 64Bit SoC, and on board WiFi and Bluetooth!
Back-Compatibility note: The Raspberry Pi 3 Model B has the same footprint and layout as the previous Model 2/B+ version, so will fit all Model 2/B+ items. However, the addition of a WiFi & Bluetooth Antenna has resulted in the ACT and PWR LEDs being moved to the opposite side of the SD card slot. Cases for the 2/B+ with LED light pipes will fit the new RPi 3, but the light pipes will not match up with the LEDs.
Broadcom BCM2387 chipset. 1.2GHz Quad-Core ARM Cortex-A53 (64Bit) 802.11 b/g/n Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
Dual Core VideoCore IV Multimedia Co-Processor. Provides Open GL ES 2.0, hardware-accelerated OpenVG, and 1080p30 H.264 high-profile decode. Capable of 1Gpixel/s, 1.5Gtexel/s or 24GFLOPs with texture filtering and DMA infrastructure
Boots from microSD card, running a version of the Linux operating system or Windows 10 IoT
85 x 56 x 17mm
Micro USB socket 5V1, 2.5A
10/100 BaseT Ethernet socket
HDMI (rev 1.3 & 1.4) Composite RCA (PAL and NTSC)
3.5mm jack HDMI USB 4 x USB 2.0 Connector
40-pin 2.54 mm (100 mil) expansion header 2x20 strip Providing 27 GPIO pins as well as +3.3 V, +5 V and GND supply lines
15-pin MIPI Camera Serial Interface (CSI-2)
Display Serial Interface (DSI) 15 way flat flex cable connector with two data lanes and a clock lane
Memory Card Slot
Push/pull Micro SDIO
