High Bay Intelligent Motion Activated Switch

High Bay Intelligent Motion Activated Switch jpg


1 $105.00

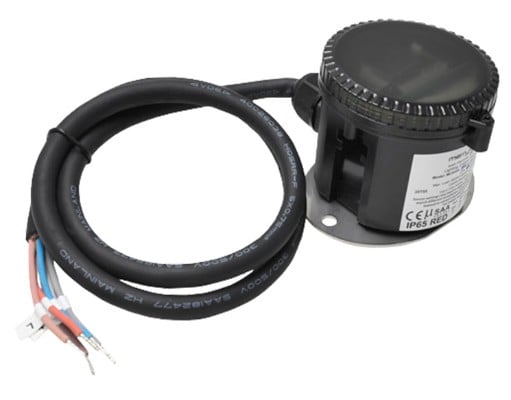

The ENSA-MS8 is a High Bay Intelligent Motion Activated Switch meticulously designed for high-ceiling environments. Equipped with ambient light sensing, microwave motion detection, a dimming interface, and a configurable on-time delay, this switch empowers you to customize light usage and energy consumption according to your precise specifications.

Add 3-step energy savings to any light with sensor switches:

  1. Daylight sensor: Activates motion sensor when lux levels fall below the limit
  2. Motion sensor: Detects movement and turns light on only when necessary
  3. On-timer: Light-on duration is set only as long as is required

* Requires the ENSA-MSRC1 remote control to adjust sensor parameters


  • Automatically activate and deactivate lighting for energy efficiency
  • Suitable for high bay LED lights
  • Adjustable sensors: Dimming (10~50%) / Motion sensitivity (25~100%) / On-timer (5s~30min)
  • 360° (ceiling) / 150° (wall) (15m height) microwave detection
  • Purpose built for high factory ceilings, IP65 rated for outdoor use


1 ~ 10V Step Dimming

< 50mA (Non-constant source) / 10%(1.4-1.6V), 20%(1.9-2.1V) / 30%(2.9-3.1V), 50% (4.9-5.1V)

Daylight Sensing

5lux / 15lux / 30lux / 50lux / 100lux / 150lux / Disable (Ambient light diffusion)

Daylight Sensor



Ø73 x 62mm

Ingress Protection


Input Voltage

220 ~ 240VAC 50Hz

Load Capacity

120VAC: 4A; 220-277VAC: 3A

Max. Rated Load (Resistive/Inductive)

1200W / 800W

Motion Detection Adjustment

100% / 75% / 50% / 25%

Motion Detection Area

360° (Ceiling) / 150° (Wall) 15m

Motion Detection Speed

0.3 ~ 1m/s

Motion Sensor Type


Mounting Type


On-timer Delay

5s ~ 30min

Operating Environment

-35 ~ 55°C

Power Consumption (Sensing Mode)


Rec. Installation Height

15m Max.

Recommended Installation Height


Stand-by Dimming

50% / 30% / 20% / 10%

Stand-by Period

5s / 5min / 10min / 30min / 60min / Infinite
