Digital Microscope with Stereo Zoom

MS1260-DM

$600

Save $285!

WAS: $885.00

QTYPrice
1 $600

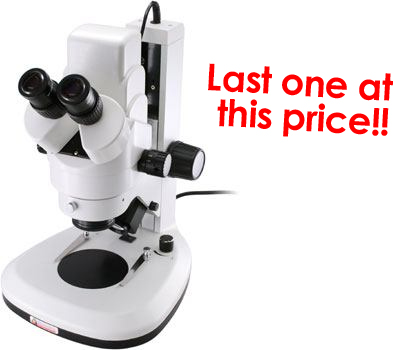

Photo of a stereo zoom digital microscope. Last one at this price.

Description

This digital USB camera output stereo zoom microscope adopts a streamlined, integrated mechanical design. Easy operation with a 3 Megapixel CMOS sensor, fully coated optics, sharp and clear images with extremely good flatness and contrast. It is characterized by brand new optical design, the best reproduction and true colour image. With its large zoom range and long working distance, it is ideal for high magnification, high resolution observation in biological research. Other applications include electronic component inspection, PCB inspection, plating inspection and a variety of industrial uses.

Specifications

Sensor

3.0 Megapixel CMOS

Resolution

2048 x 1536 Effective Pixels

Frame Rate

7.5 FPS @ 2048 x 1536

Sensitivity

0.9v/lux

Pixel Size

3.18um x 3.18um

Data Interface

USB 2.0 - Windows2000/XP

Camera Power

USB 2.0

Magnification

7X - 45X

Viewing Head

Binocular head, 45° inclined

Zoom Ratio

1 - 6.3

Eyepiece

Wide Field (WF) 10X - 22mm, with Dioptre adjustment High-point eyepiece, you can observe image with glasses

Objective

0.7X - 4.5X

Inter-pupillary distance

Adjustable 55 - 75mm

Dioptre

Adjustable range +/- 5mm

Working Distance

100mm

Stage

Black/White stage disc & Frosted glass stage disc

Focusing System

Two focusing knobs, one also used for tension adjustment, slide range 49mm

Illumination

Incident & Transmitted, LED - with switch and independent dimmer controls

Accessories

Dust Cover
