HC49U Crystal

CR01xx

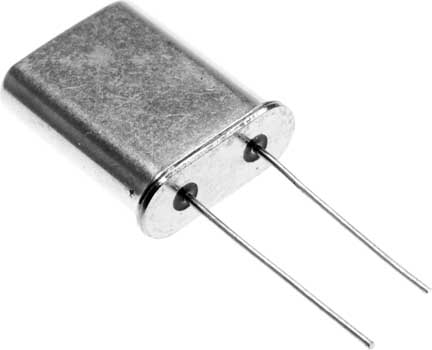

Photo of a HC49U crystal.

$2.20 - $3.00

Clear

Description

These HC49U crystal oscillators are a 10.9 x 4.65mm through hole crystal with superior resistance metal case. They are available in a wide range of frequencies, load capacitance and have many applications. They are suitable for wristwatches, clocks, radios, computers, test equipment, and more.

Specifications

Holder Type

HC-49U

Frequency Range

1.8432MHz - 200.000MHz

Operating Temperature Range

-10°C to 60°C

Storage Temperature Range

-40°C to 85°C

Drive Level

100uW

Load Capacitance

8pF-32pF or Series

Frequency Tolerance

±30ppm

Frequency Stability

± 50ppm

Shunt Capacitance

7.0pF max

Insulation Resistance

500MΩ min. at DC 100V

Crystal Case

Through Hole, 10.9mm x 4.65mm

Dimensions

Case Height

13.46mm

Full Range

Nominal Frequency Product Code
1.8432 MHz CR0108
2 MHz CR0110
2.4576 MHz CR0111
3.072 MHz CR0113
3.2768 MHz CR0119
3.5795 MHz CR0125
4 MHz CR0130
4.608 MHz CR0136
4.9152 MHz CR0138
5 MHz CR0139
8 MHz CR0150
12.288 MHz CR0169
14.31818 MHz CR0174
20 MHz CR0185
