Pluggable Screw Terminal Connector
$0.72 - $9.00
Description
Pluggable Screw Terminal Connector rated at 10A 300V and will accept 28-16 AWG cable. They mate with horizontal or vertical PCB connectors. 5.08mm pin spacing.
Specifications
Current Rating
10A
Rated Voltage
300VAC
Cable Gauge
28 - 16 AWG
Dimensions
Pin spacing/pitch
5.08 mm
Full Range
| No. of Ways | Type | Product Code |
|---|---|---|
| 2 Way | Plug | CN2120 |
| 2 Way | Vertical Header | CN2122 |
| 2 Way | Horizontal Header | CN2124 |
| 3 Way | Plug | CN2130 |
| 3 Way | Vertical Header | CN2132 |
| 3 Way | Horizontal Header | CN2134 |

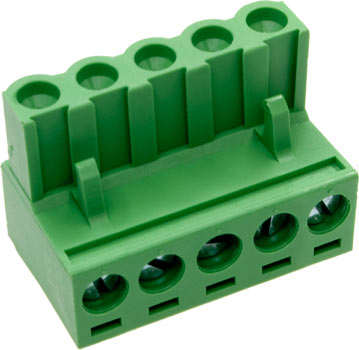

| 5 Way | Plug | CN2150 |
| 5 Way | Vertical Header | CN2152 |
| 5 Way | Horizontal Header | CN2154 |
| 6 Way | Plug | CN2160 |
| 6 Way | Vertical Header | CN2162 |
| 6 Way | Horizontal Header | CN2164 |
| 9 Way | Plug | CN2190 |
| 9 Way | Vertical Header | CN2192 |
