PCB Mount Transformers 7VA 240VAC

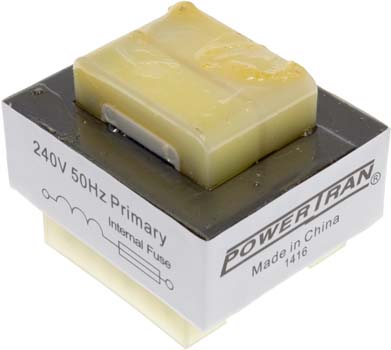

Photo of a  7VA PCB TX 6V + 6V taken from the top.

$9.19 - $11.95

Description

PCB Mount Transformers 7VA 240VAC made with very high-quality grain-oriented silicon steel. Thus resulting in a compact, high-performance, high output transformer. Suitable for use in industrial control devices, communications equipment. Also any other application that requires a high-quality, approved power supply transformer.

Note: You must use these with a standard 100mA external AC fuse.

Specifications

Primary Voltage

240V AC

Total VA Rating

7VA

Insulation

Class B (130°C)

Magnetising Current

<30mA

Temperature Rise

<65°C

Recommended AC Fuse

100mA

Regulation

11%

Thermal Fuse

Internal 115°C

Dimensions

Weight

265g

Length

48mm

Width

40mm

Height

43mm

Full Range

Sec. V Sec. Parallel Sec. Series Product Code
6V + 6V 1.166A 0.583A TM7112
7.5V + 7.5V 0.933A 0.466A TM7115
9V + 9V 0.77A 0.388A TM7118
12V + 12V 0.58A 0.29A TM7124
15V + 15V 0.466A 0.233A TM7130
