White Arcade Push Button 30mm Switch MOM. SPST

SW0674

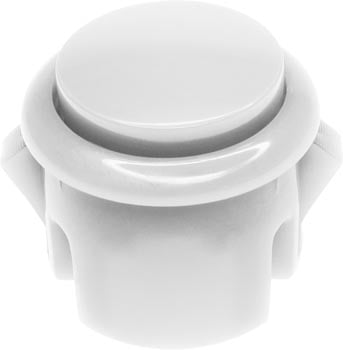

Photo of a 30mm diameter white arcade push button switch.

$2.46

QTYPrice
1 $2.46

Description

Large round momentary contact push button switch, 32.8mm overall diameter to fit 30mm hole. High quality switch used in many arcade game machines and amusement games.

Features

  • Momentary Push SPST switch Normally Open (N.O.)
  • Clip in mounting
  • Mounting hole 30mm
  • Available in range of colours

Specifications

Current Rating

2A

Voltage Rating

12VDC

Material

Polycarbonate (PC)

Dimensions

Overall Diameter (mm)

32.8

Button Diameter (mm)

24.7

Mounting Hole Size (mm)

30

Dimension illustration of a 30mm diameter arcade push button switch.

Image for sizing illustration only, may not be representative of the product.
