Raspberry Pi 3 Model B+ STEM Coding Starter Pack

RPi3B331+

$139.95

QTYPrice
1 $139.95
Photo of a Raspberry Pi 3 Model B+ STEM Coding Starter Pack.

Description

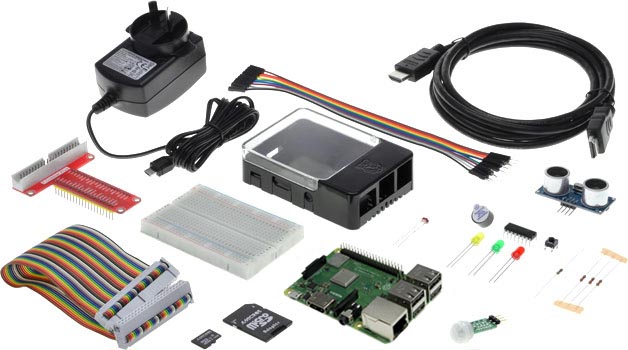

This Raspberry Pi 3 Model B+ STEM kit for beginner programmers and coders has a GPIO Expansion Board and breadboard, plus many components. The full list of components can be found below in the Included Lines section. This bundle is perfect for encouraging student interest in STEM subjects and programming - see ‘Physical Computing with Python’ below in the Resources section.

Included

1 x RPi3-B+ : Raspberry Pi 3 Model B Computer

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

1 x CM0094M-NOOBS : 16GB microSD Class 10 with NOOBS

A microSD HC card with 16GB of Class 10 flash memory, pre-installed with NOOBS for Raspberry Pi. NOOBS is ideal for beginners who want to quickly get a Raspberry Pi up and running with minimal mucking around.

1 x RPi3023TB : Raspberry Pi 2/3 SenseHat Transparent/Black Enclosure

Protect your Raspberry Pi 2/3 with this black ABS case with removable transparent plastic cover. This case allows access to all the Pi’s ports and GPIO pins in a sleek, compact design.

1 x PS1004-2.5 : Official Raspberry Pi 3 2.5A 5.1VDC PSU

This power supply unit (PSU) for the Raspberry Pi 3 is Pi Foundation approved. The power supply is an integrated 1.5m cable and microUSB plug. It supports up to 2.5A of current which is plenty to power devices through the four USB ports on the board.

1 x RPi3402 : 2.0m HDMI Cable

This high speed HDMI lead is 1.4 compliant and ideally suited for connecting your Raspberry Pi 3 Model B computer to any HDMI monitor or HDTV.

1 x RPi5202 : GPIO Expansion T-Board for Raspberry Pi 2/3/B+

This GPIO Expansion Board can bridge your Raspberry Pi 3\\\'s GPIO pins to a solderless breadboard for easy experimentation.

1 x MA4004 : 400 Hole Breadboard (300 + 2x50 Rails)

This solderless breadboard makes experimentation with electronics fun and easy. Perfect for the Pi 3\\\'s GPIO pins to be bridged to.

1 x CM0094M-NOOBS : microSD Card 16GB Class 10 with NOOBS for Raspberry Pi

microSD HC card with 16GB of Class 10 flash memory, pre-installed with NOOBS for Raspberry Pi. NOOBS is ideal for beginners who want to quickly get a Raspberry Pi up and running with minimal mucking around.

1 x RPi5204 : GPIO Cable 40-way for Raspberry Pi

The Raspberry Pi 3 features a 40-pin GPIO header. If you want to bridge those contacts out onto another PCB, you\\\'ll want this cable. It has 40 socket & wire sets.

1 x MA4004 : 400 Hole Breadboard (300+2*50 Rails)

This solderless breadboard makes experimentation with electronics fun and easy. Perfect for the Pi 3\\\'s GPIO pins to be bridged to.

1 x ARD2-2020 : Ultrasonic Distance Sensor Module HC-SR04

1 x SE0105 : Digital PIR Sensor

1 x MPB12C39A : Light Dependent Resistor LDR 5549 Photoresistor

1 x SW0520 : Tactile Switch SPST 6mm sq. 2mm Button

1 x AL3008 : Piezo Buzzer-PCB 12mm dia.

1 x LED-5MM/R : 5mm LED Red Diffused

1 x LED-5MM/G : 5mm LED Green Diffused

1 x LED-5MM/Y : 5mm LED Yellow Diffused

3 x RS1425 : 330R CR25 Carb Resistor

1 x RS1565 : 4K7 CR25 Carb Resistor
