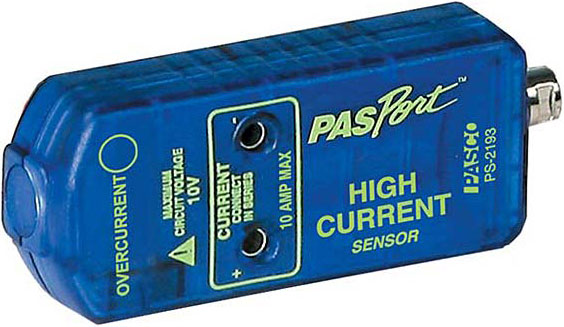

PASCO PASPort High Current Sensor (PS-2193)

DLPS-2193
PASPort High Current Sensor. PASCO PS-2193.

$187

QTYPrice
1 $187

Description

The High Current Sensor has a low (0.01 Ω) resistance sensing element, can measure up to 10A, and has an LED over-current indicator. Dynamic variable over-sampling greatly reduces the measurement noise at low sample rates.

NOTE: The PASCO PASPort sensors require one of the PASPort interfaces in order to use them.

Features

  • 10 Amp max.
  • Over-current LED protection
  • Dynamic variable over-sampling greatly reduces the measurement noise at low sample rates

Specifications

Measureable Current Range

±10A

Measurement Resolution

16 bits (approx. 300µA)

Maximum Circuit Voltage

10V above or below earth ground

Measurement Accuracy

0.5% or 2.5mA (whichever is greater)

Sensing Element Series Resistance

0.01 Ω

Maximum Sample Rate

1000 Hz

Maximum Continuous Current without Damage

12A

Maximum Continuous circuit Overvoltage without damage

40V above or below earth ground

Terminals

4mm banana jacks

Resources
