Raspberry Pi 3 Model B+

RPi3-B+

$64.95

QTYPrice
1 $64.95

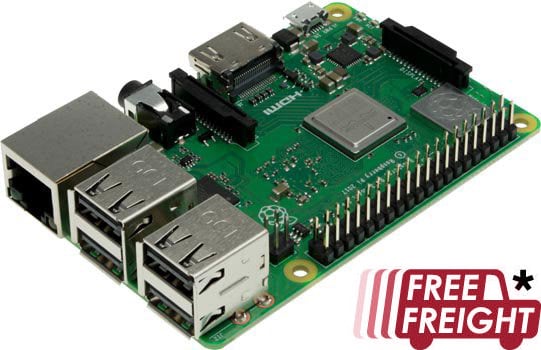

Photo of a Raspberry Pi 3 model B+.

Description

The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range, boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT. The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced wireless LAN compliance testing, improving both cost and time to market. The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.

The Raspberry Pi 3 Model B+ offers improvements over the previous Model B including:

  • Faster processing: Running over 10% faster at 1.4GHz
  • Improved connectivity: Dual-band 2.4GHz & 5GHz WiFi and Bluetooth 4.2/BLE
  • Faster networking: Gigabit Ethernet over USB 2.0 (maximum throughput of 300Mbps)
  • Power over Ethernet (PoE): PoE capability via new PoE HAT

*Free freight Australia wide. Not applicable to orders outside Australia.
Freight will still apply to any additional, non free freight items.

Features

  • Broadcom BCM2837B0, Cortex-A53, 64-bit, quad-core SoC @ 1.4GHz
  • 1GB LPDDR2 SDRAM
  • 2.4GHz/5GHz IEEE 802.11 b/g/n/ac Wireless LAN (WLAN)
  • Bluetooth Low Energy v4.2 (BLE)
  • Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
  • Power over Ethernet (PoE) enabled (requires separate PoE HAT)
  • 4 x USB 2.0 Ports
  • Extended 40-pin GPIO Header
  • Full Size HDMI, MIPI DSI display port, MIPI CSI camera port
  • 4-pole stereo audio/composite video output port
  • MicroSD card slot for operating system and data storage
  • Power supply requirements - 5.1V/2.5A DC via micro USB or GPIO

Specifications

Processor

Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz

Memory

1GB LPDDR2 SDRAM

Access

Extended 40-pin GPIO header

USB Ports

4 × USB 2.0 ports

Connectivity

2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)

Environment:

Operating temperature, 0–50°C
