3mm Green/Yellow 2:1 Heat Shrink Polyolefin Tubing 1.2M

HS1203GR/YLW

$1.80

QTY

1

10

25

100

Price

$1.80

$1.62

$1.45

$0.95

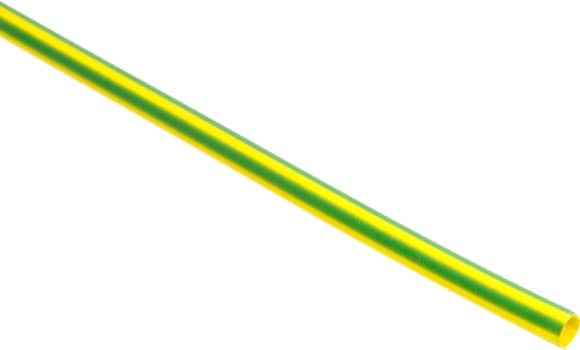

Photo of a 3 mm diameter green and yellow heat shrink tubing 1.2 m.

Description

Heatshrink Tubing 3mm diameter Green/Yellow, flexible, flame-resistant, thin-walled polyolefin tubing with 2:1 shrink ratio, Length 1.2m. Typical applications include insulation of electrical connections, wire spaces, soldered joints & connections in electronics, communications, automotive, marine, manufacturing and other fields.

Specifications

Heat shrink ratio

2:1

Heat shrink colour

Green and yellow

Material

Polyolefin (PE)

Meets

UL 224, CAN/CSA C22.2 NO198.1-99

Minimum shrink temperature

70°C

Shrink with

Heatgun, Hairdryer, Gas Burner or Match

Minimum full recovery temperature

120°C

Continuous operating temperature

-55°C ~ 125°C

Rated Voltage

600V

Tensile Strength

10.4Mpa

Flammability

VW-1

Benefits

Halogen-free, low-smoke emission, non-toxic, flexible, flame retardant, swiftly shrinking

Dimensions

Length (m)

1.2

Diameter (mm)

Nominal 3mm (Supplied as 3.4 ±0.2mm : Shrunk ID ≤ 1.5mm)
